Injection Molding Machine for PET Bottles

An injection molding machine for PET bottles is an industrial equipment specially designed for producing PET bottles. Its manufacturing process includes feeding PET resin into the hopper, heating the molten resin between 260 and 300°C, and then injecting it into the preform mold under high pressure of 100 to 200 MPa. The preform is solidified by cooling with a cooling medium. The cooling time is critical to ensure crystallization and dimensional stability. After cooling, the preform is ejected. The subsequent preform is reheated and stretch blow molded into the final bottle shape. This two-stage process can produce bottles with consistent quality and precise dimensions.

1. High Production Efficiency
Advanced injection molding machines for PET bottles can produce thousands of bottles per hour. This high production efficiency is achieved through an automated process, from resin feeding to bottle molding and ejection, with almost no human intervention. The automatic feeding system ensures a steady flow of resin into the hopper. In addition, the fast injection and cooling steps and the efficient ejection mechanism increase the production speed, meeting the high demands of industries such as beverages, cosmetics, and pharmaceuticals.

2. Precise And Consistent Quality
The injection molding process ensures high precision and consistency for each bottle, strictly controlling the tolerances of bottle size, wall thickness, and weight. For a standard 500 ml PET bottle, the height and diameter errors can be controlled within ±1 mm, the wall thickness deviation within ±0.1 mm, the weight error within ±1 gram, and the volume change within ±1%.

3. Energy Efficiency
Modern injection molding machine for PET bottles uses advanced heating and cooling systems to optimize energy consumption. For example, the new cooling system can reduce the use of cooling water by 20%-30% and improve cooling efficiency. The inverter adjusts the motor power consumption according to the production load and can reduce the motor power by 30%-40% at low load. Efficient use of cooling water and proper insulation of machine parts can further reduce energy consumption. On average, injection molding machines for PET bottles can reduce energy consumption by 15%-20%. Medium-sized companies using these machines can save hundreds of thousands of kWh of electricity and reduce carbon emissions every year.

Application

1. Beverage Industry

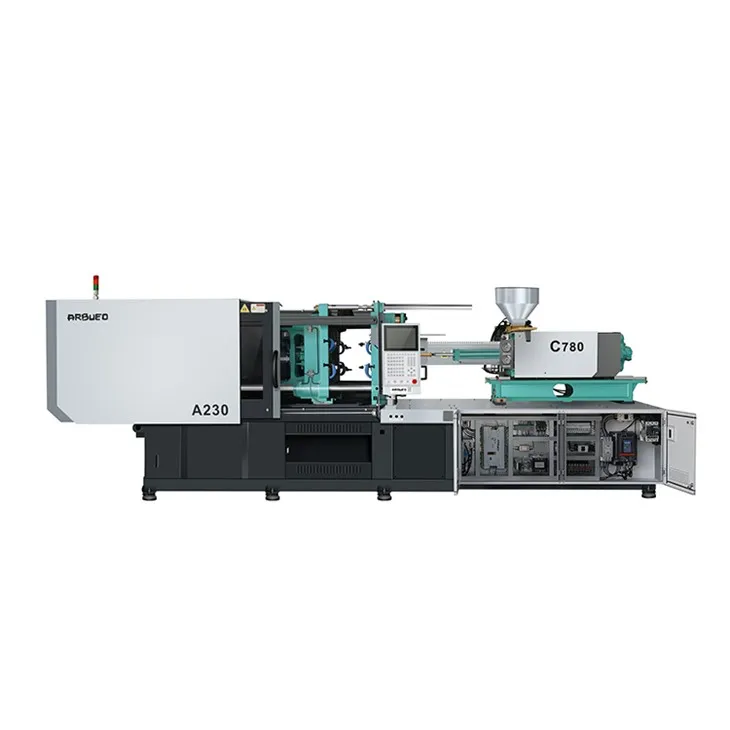

In the beverage industry, PET bottles are widely used to package water, soft drinks, juices, and other beverages. The A230/C780 injection molding machine for PET bottles can produce high-quality preforms that can be stretched blow molded into bottles of different sizes and shapes. For example, it can produce preforms for 500 ml, 1 liter, and 2 liter bottles with precision and consistency. The machine's high production efficiency and reliability make it suitable for meeting the high-volume needs of the beverage industry. With the ability to produce thousands of preforms per hour, it can keep up with the fast-paced production lines of beverage manufacturers.

2. Cosmetic Industry
In the cosmetic industry, PET bottles are used to package lotions, creams, perfumes, and other beauty products. The A230/C780 injection molding machine for PET bottles can produce preforms with complex designs and finishes that increase the beauty of the packaging. For example, it can create preforms with embossed logos or special shapes.

FAQ

1. What is an injection molding machine for PET bottles?
An injection molding machine for PET bottles is a plastic processing equipment specially used for producing PET preforms. It injects molten PET plastic into the mold and obtains the desired preform shape after cooling.

2. What is the working principle of injection molding machine for PET bottles?
The working principle of the injection molding machine for PET bottles is to dry the PET plastic particles, remove the moisture and heat and melt them, inject the molten plastic into the mold through the injection machine, and then cool and shape it in the mold and finally demold the preform to obtain the bottle.

3. What are the main components of an injection molding machine for PET bottles?
The main components of an injection molding machine for PET bottles include an injection system, mold clamping system, heating system, cooling system, control system, etc. Among them, the injection system is responsible for injecting molten plastic into the mold, the mold clamping system ensures the tight closure of the mold, the heating system is used to heat the plastic particles, the cooling system is used to cool the mold and the bottle preform, and the control system is responsible for monitoring and adjusting the entire injection molding process.

4. What effect does the injection pressure of the injection molding machine for PET bottles have on the quality of the bottle preform?
The injection pressure has an important influence on the molding quality of PET preforms. Insufficient injection pressure will lead to incomplete filling of the preform, while excessive injection pressure may cause cracks or deformation of the preform. Therefore, it is necessary to reasonably select the injection pressure according to the characteristics of the PET material and the mold structure.

5. How does the injection speed of the injection molding machine for PET bottles affect the quality of the preform?
The speed of the injection speed will also affect the molding quality of the PET preform. Too fast an injection speed may lead to uneven filling of the preform, while too slow an injection speed may cause the preform to cool excessively. Therefore, it is necessary to select a suitable injection speed according to the actual situation.

6. In what range should the mold temperature of the injection molding machine for PET bottles be controlled?
The mold temperature has an important influence on the molding quality of the PET preform. Generally, the mold temperature should be controlled in the range of 130-150℃ to ensure that the hardness and transparency of the preform meet the requirements.

7. How to set the melt temperature of the injection molding machine for PET bottles?
The melt temperature also has an important influence on the molding quality of the PET preform. The melt temperature should usually be set within the range of 270-310℃ to ensure that the plastic can be fully melted and smoothly injected into the mold.

8. How to prevent plastic degradation during the production process of injection molding machines for PET bottles?
To prevent plastic degradation, injection molding machine for PET bottles needs to strictly control the drying and dehumidification of raw materials to prevent moisture and impurities from entering the plastic. At the same time, attention should also be paid to the control of injection speed and screw shear force to reduce the friction and shearing effect of plastic during injection. In addition, the injection molding machine and mold need to be cleaned regularly to avoid contamination and degradation of plastic by residues.
